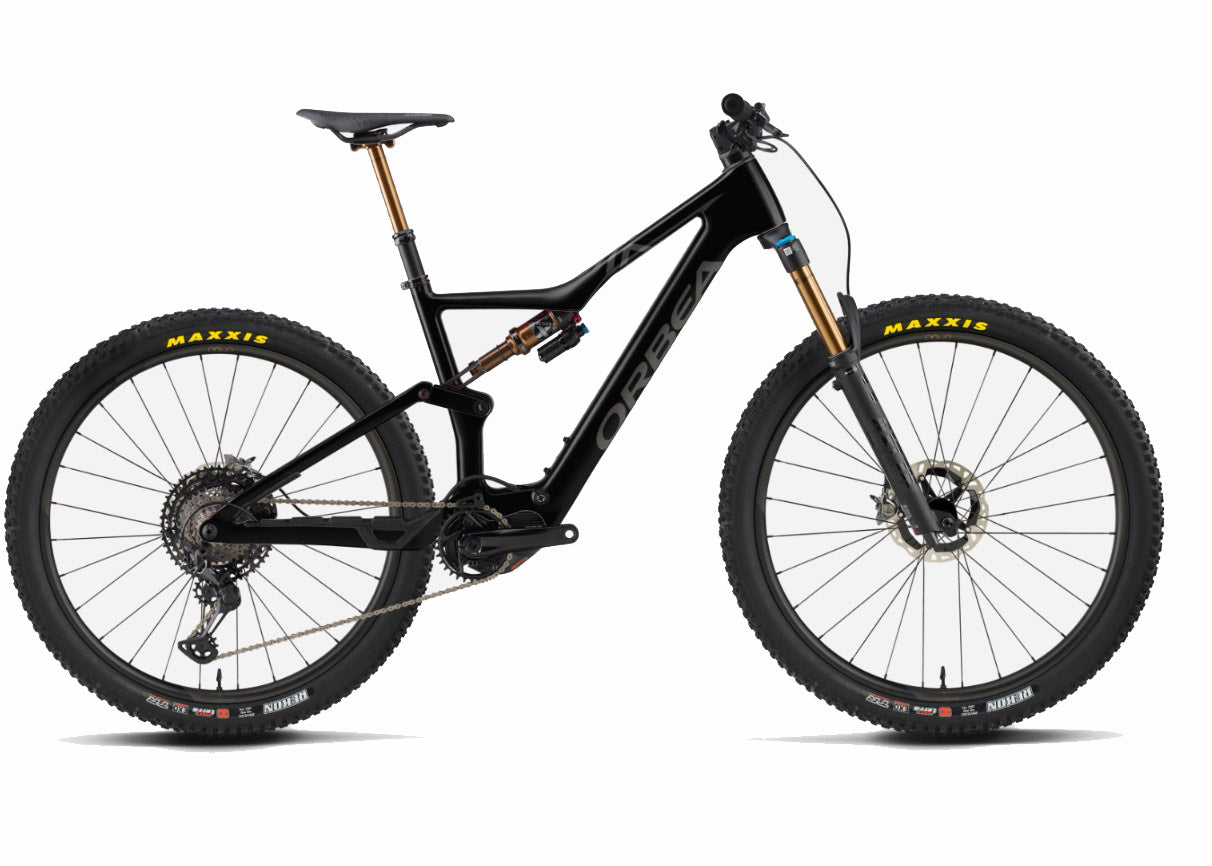

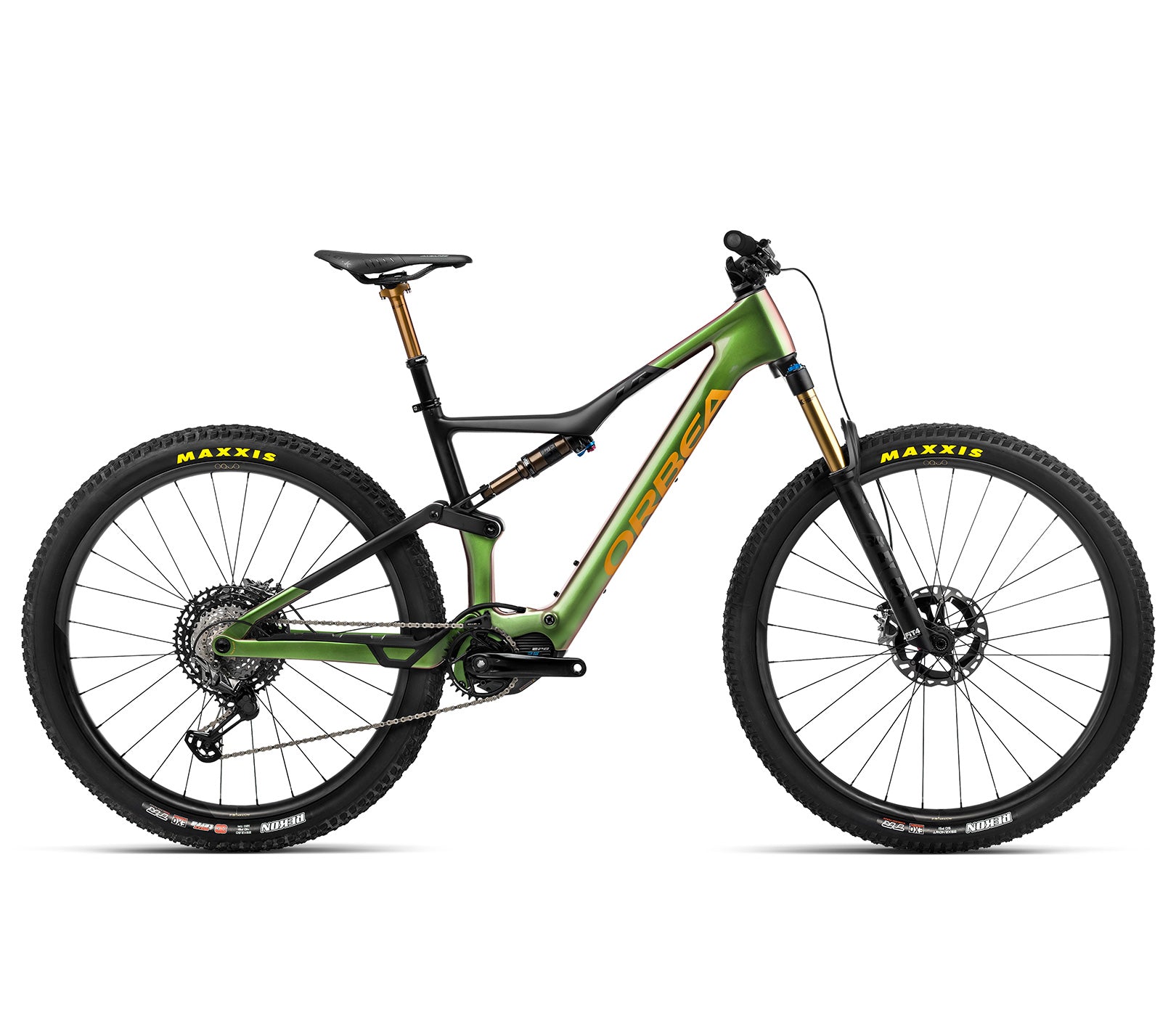

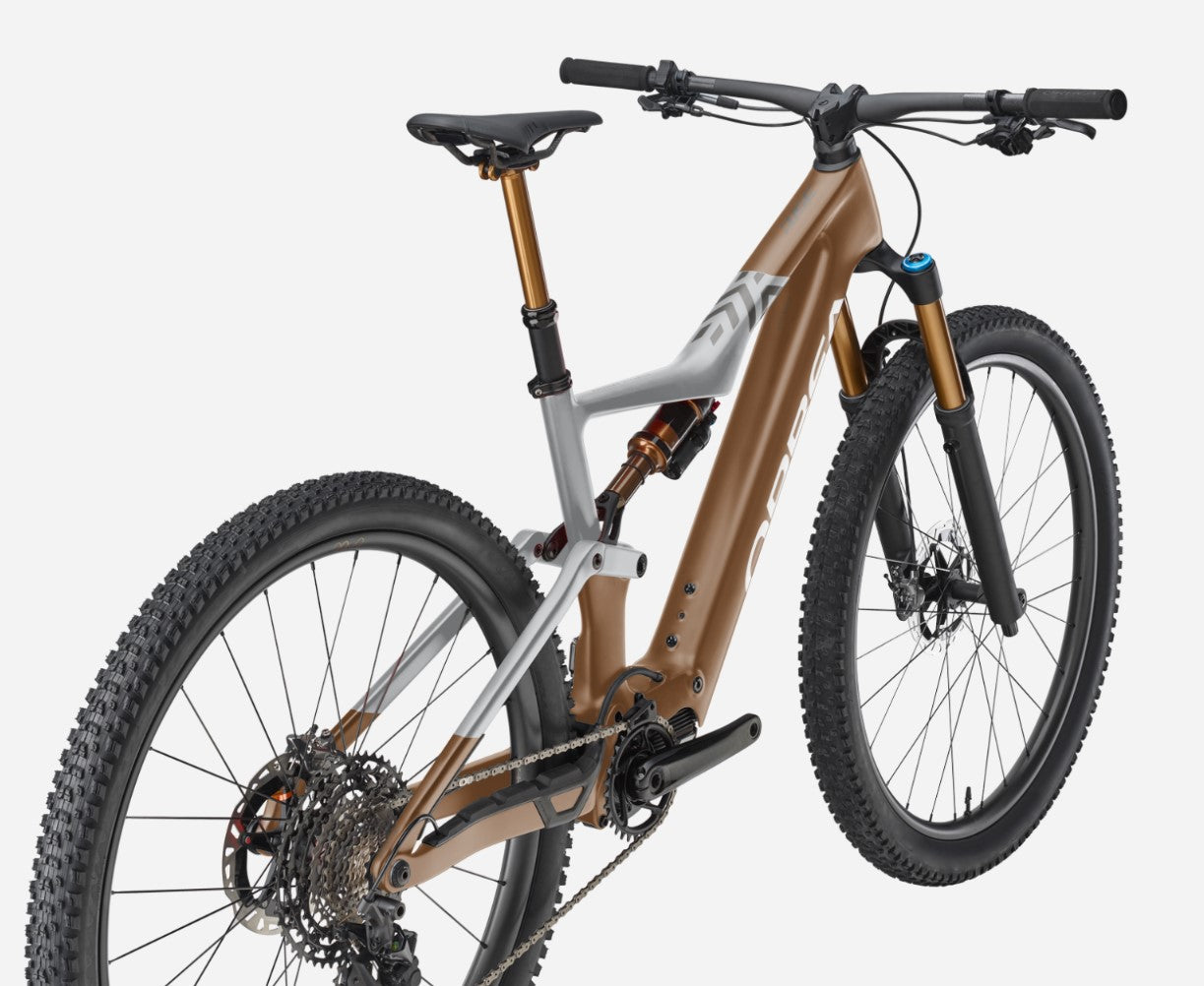

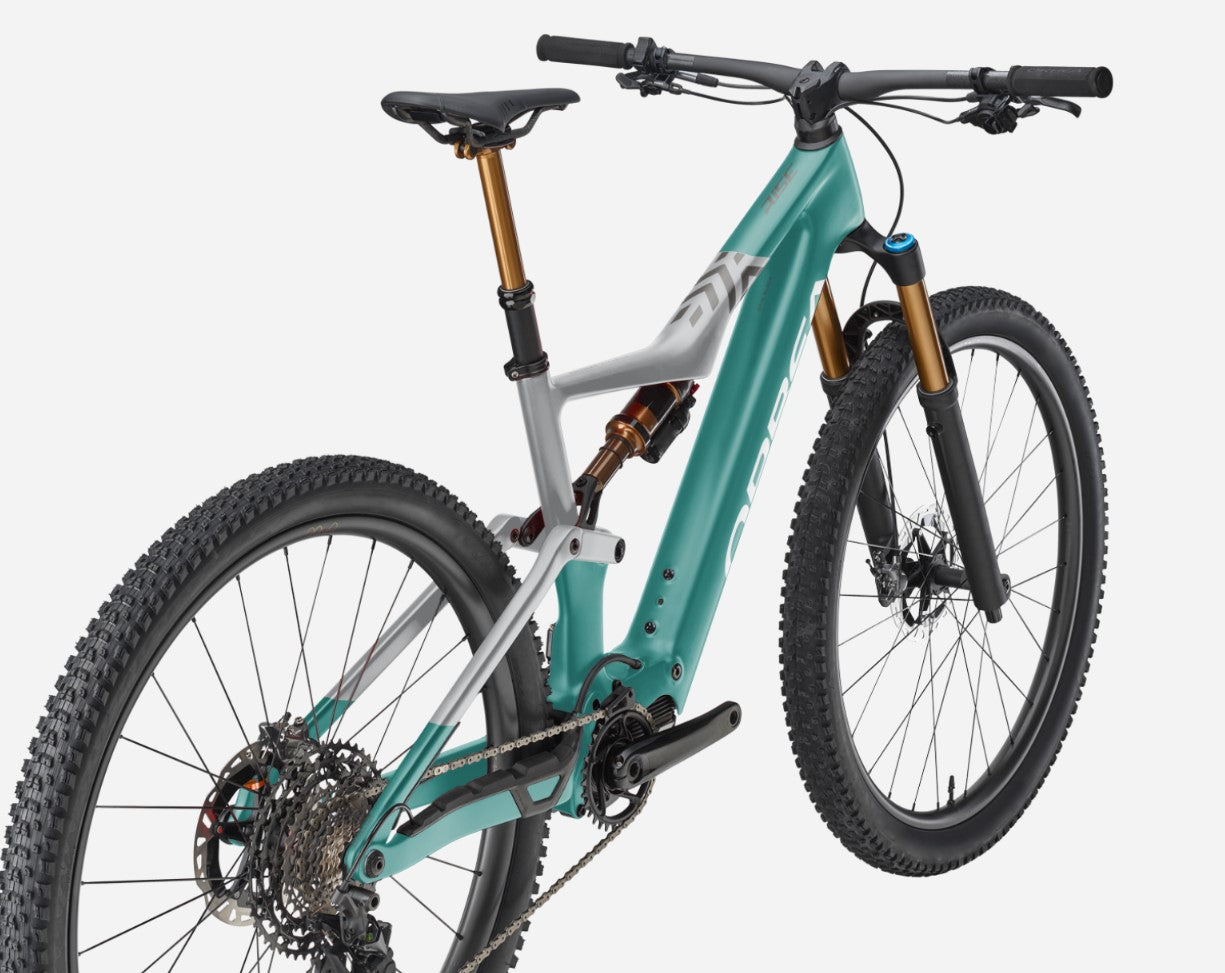

Orbea Rise M-TEAM 2023

Nye XT di2, Fox factory dempere, mulighet for 540wh batteri

Veiledende pris 109.900,00 kr Salgspris

87.920,00 kr

/
MVA inkludert. Frakt beregnes i kassen.

(Mer informajson på norsk kommer snart)

Les alt om hva som gjør den nye Rise serien så unik og ulk alle andre på Orbea sine nettsider her: https://www.orbea.com/no-en/ebikes/mountain/rise/

Les mer om alle detaljer om teknologien som gjør denne sykkelen her: https://www.orbea.com/no-en/ebikes/mountain/rise/technology

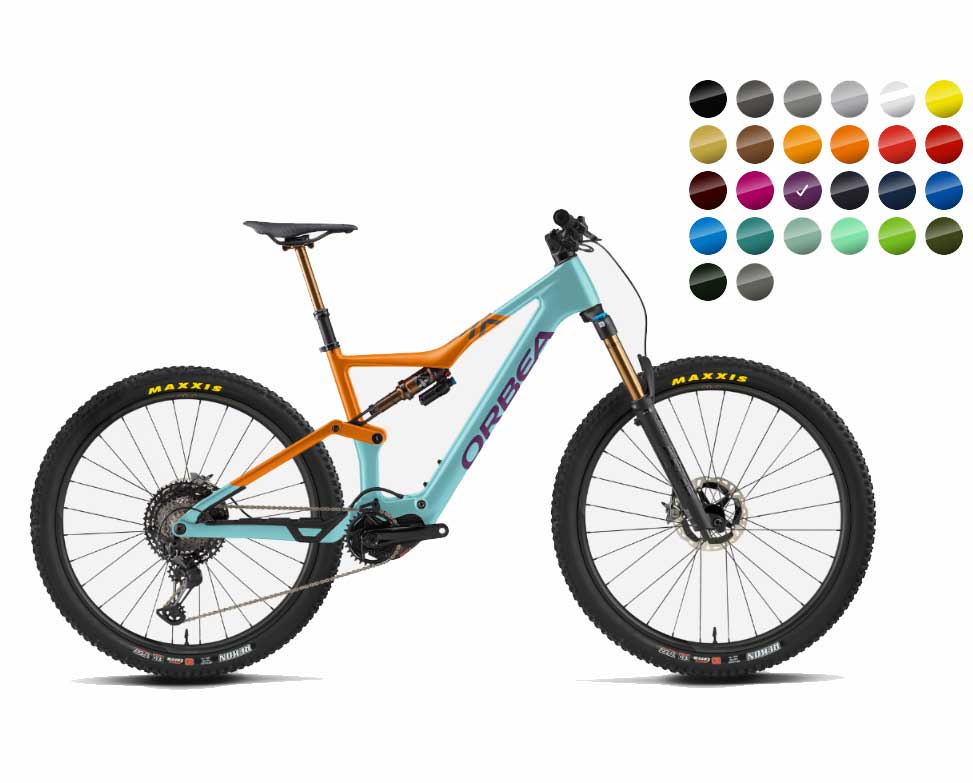

Denne sykkelen leveres i custom design, der du selv velger designet på modellen (uten tillegg i pris) Prøvd å design din modell i online-konfiguratoren til Orbea her: https://www.orbea.com/no-en/myo/step-1/rise-m-team-2023/

Omtale fra Bikeradar:

The 2023 Rise carbon models use Shimano’s latest EP801 RS electric mountain bike motor. RS stands for Rider Synergy. It’s a standard Shimano EP801 motor, but Orbea has tweaked the software to limit maximum torque to 60Nm, plus tuned a more natural feel at optimal cadences of 75 to 90rpm.

The aluminium Rise models use Shimano’s EP6 RS motor, which shares the same power, features and connectivity as the EP801 RS motors on the carbon bikes. However, these motors use an aluminium shell rather than magnesium, and the system is approximately 300g heavier.

A significant update is a new battery Orbea has built. Using 21,700 cells, Orbea claims this offers a better charge and discharge ratio, and heat management. The new 360Wh battery is also 300g lighter than the previous Rise battery, with a more compact design.

The frame anchor points are integrated into the battery body, saving a few grams and slightly improving frame weight distribution according to Orbea.

Se hele omtalen her: https://www.bikeradar.com/news/2023-orbea-rise/

Standard spesifikasjoner Rise M-Team:

  • FRAME Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
  • SHOCK Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
    Consult other components
  • FORK Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
    Consult other components
  • CHAINRING e*thirteen e*spec Direct Mount 32T Boost
  • CRANK Shimano Steps EM900
  • HEADSET Alloy 1-1/2", Black Oxidated Bearing
  • HANDLEBAR OC Mountain Control MC10 Carbon, Rise 20, Width 800
    Consult other components
  • STEM OC Mountain Control MC10 Alu SL, 0º
  • SHIFTERS Shimnano M8150
  • BRAKES Shimano XT M8120 Hydraulic Disc
  • CASSETTE Shimano CS-M8100 10-51t 12-Speed
  • REAR DERAILLEUR Shimano XT Di2 M8150 12s SGS Shadow Plus
  • CHAIN Shimano M8100
  • WHEELS OQUO Mountain Control MC32LTD Carbon
  • TYRES Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
  • SEATPOST Fox Transfer Factory Kashima Dropper 31.6
  • SEATPOST LEVER Shimano SL-MT-800 I-Spec EV
  • SADDLE Fizik Taiga Kium rail
  • CHAINGUIDE Orbea Rise chainguide
  • MOTOR Shimano EP8-RS
  • BATTERY Orbea Internal 360Wh (Optional 540Wh)
  • CHARGER Orbea 2.Generation eBike Smart charger 42V/2-4A
  • REMOTE EN600-L
